IHRedDrive Posted February 2 Share Posted February 2 Our diesel row-crop was built at Farmall in April of '65. Dad used it as a raking tractor among other things. Pretty gutsy well optioned tractor for its day. We decided to restore it a few years back so a few before and after pics. Second rebuild of the original Roosa master pump. Now it's my 3 year old grandson's favorite tractor. He kinda walks next to it and pats his hand on the rear tires whenever he's around it, always asking me to take him out on it. And yeah Rusty, sloooooooooow reverse😄 6 Quote Link to comment Share on other sites More sharing options...
IH Forever Posted February 2 Share Posted February 2 31 minutes ago, IHRedDrive said: Our diesel row-crop was built at Farmall in April of '65. Dad used it as a raking tractor among other things. Pretty gutsy well optioned tractor for its day. We decided to restore it a few years back so a few before and after pics. Second rebuild of the original Roosa master pump. Now it's my 3 year old grandson's favorite tractor. He kinda walks next to it and pats his hand on the rear tires whenever he's around it, always asking me to take him out on it. And yeah Rusty, sloooooooooow reverse😄 I really like that tractor. I'd really like to find 1 just like that except with fast hitch to add to my collection some day. 1 Quote Link to comment Share on other sites More sharing options...
MacAR Posted February 2 Share Posted February 2 1 hour ago, IHhogfarmer said: How do you know if one has the fast reverser? Could it be indicated by the serial tag? It'll have a W on the serial tag; mine is very faintly stamped but it's there. Mac Quote Link to comment Share on other sites More sharing options...
nepoweshiekfarmalls Posted February 2 Author Share Posted February 2 More 504: 3 Quote Link to comment Share on other sites More sharing options...
IHRedDrive Posted February 2 Share Posted February 2 8 minutes ago, nepoweshiekfarmalls said: More 504: I like the utility version too. Sharp! Quote Link to comment Share on other sites More sharing options...
DT Fan Posted February 2 Share Posted February 2 1 hour ago, nepoweshiekfarmalls said: The 504 and #9 rake belong to a friend of mine from southern Iowa. He likes the combo for the task. Why is he not a member of this board? He's certainly got what it takes to fit right in around here. Would have a lot of good input too. Quote Link to comment Share on other sites More sharing options...
IH Forever Posted February 2 Share Posted February 2 2 hours ago, IHhogfarmer said: @nepoweshiekfarmalls is that second pic your 504 and #9 rake? If I someday own the neighbors I think it will be a great tractor for my #9 rake. How do you know if one has the fast reverser? Could it be indicated by the serial tag? I'm sure the fast reverser is listed on the serial number, I just don't know how it's designated. The 1 and only 504 I saw that had it was sitting on the lot at Jewell Implement in Jewell, IA. That would have been back in the late 90's I suppose. The fast reverser lever is where the TA lever would be otherwise. Quote Link to comment Share on other sites More sharing options...

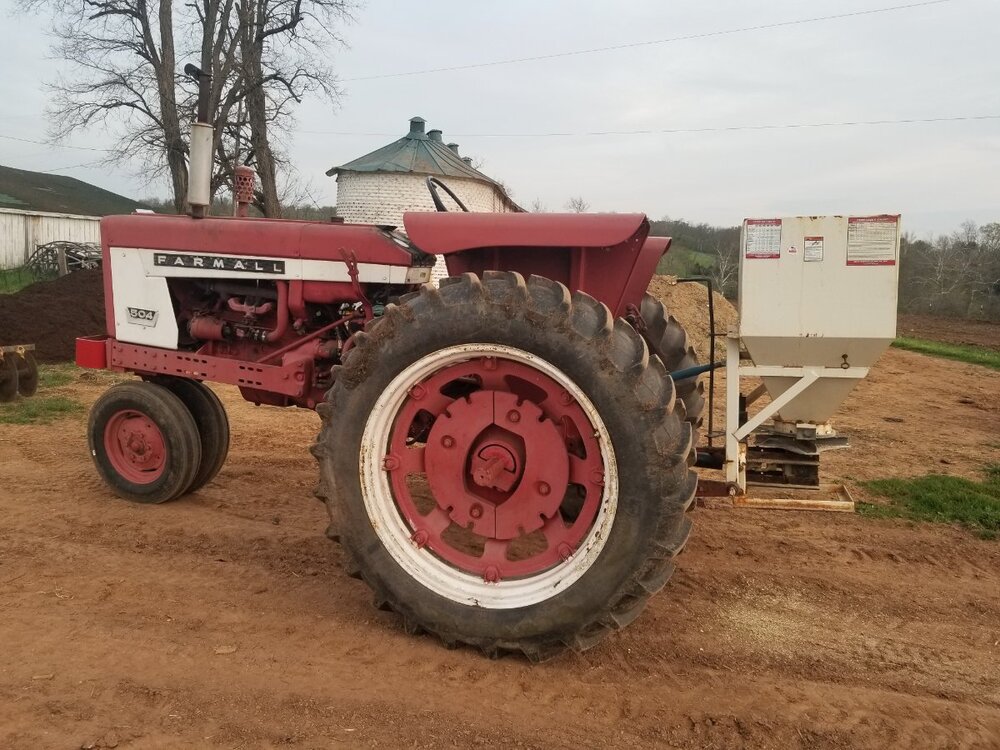

acem Posted February 2 Share Posted February 2 My 504 is the smallest tractor on my farm. It's not a tillage tractor here. It's power steering and 3 pt come in handy compared to a letter series tractor. The diesel should have a stronger engine than Mine on lpg. 2 Quote Link to comment Share on other sites More sharing options...
SaskM Posted February 3 Share Posted February 3 Here is a pic of our 1962 model. Not much for options...swinging drawbar and no power steering. 6 Quote Link to comment Share on other sites More sharing options...
SMDFarmboy24 Posted February 3 Share Posted February 3 Here is mine, a 1966 model. I'd like to use it more for little jobs, but I think the handpump has an issue as it is difficult to steer once it warms up. It was definitely handy with the 3pt rake. 4 Quote Link to comment Share on other sites More sharing options...
mike newman Posted February 3 Share Posted February 3 ....Brother in law's 504 we raised for tobacco work...way back in the daze when men were men and the Socialists were not so intrusive........ Mike 8 Quote Link to comment Share on other sites More sharing options...
snoshoe Posted February 3 Share Posted February 3 20 minutes ago, SMDFarmboy24 said: Here is mine, a 1966 model. I'd like to use it more for little jobs, but I think the handpump has an issue as it is difficult to steer once it warms up. It was definitely handy with the 3pt rake. Farmall model does not have a hand pump. Problem is more likely in all the shafts and joints between steering wheel and front bolster. 1 Quote Link to comment Share on other sites More sharing options...

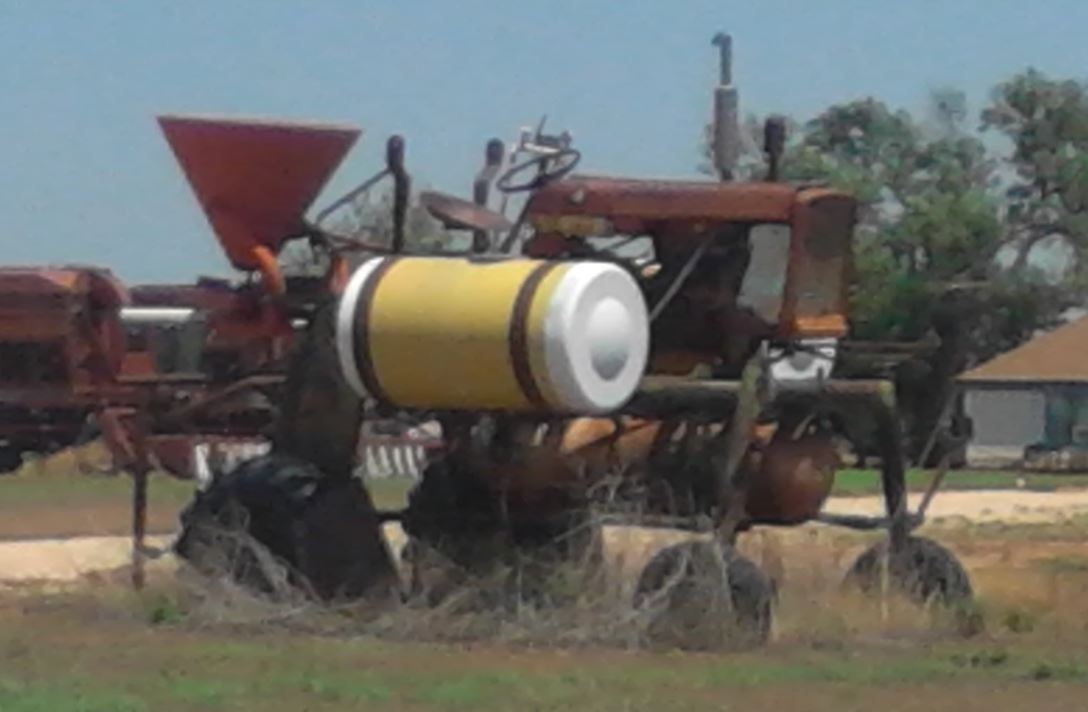

twostepn2001 Posted February 3 Share Posted February 3 l'd forgot about the 504 LP we had on our farm many years ago until ls l saw Mike's post above. lt was a 504 LP on a Hi-Trac frame. Originally bought to use for flame cultivating But also had booms for spraying and a hopper to spread fertilizer. Dad had to run it at night because of the heat from the flame jets plus the noise, he said it was like sitting on top of a jet. Top pic was ours, bottom pic is a advertising pic from when they were new. 6 Quote Link to comment Share on other sites More sharing options...
acem Posted February 4 Share Posted February 4 I knew a man who worked on a vegetable farm in California. He ran a 504 with front mounted cultivator for years. Quote Link to comment Share on other sites More sharing options...
augercreek Posted February 4 Share Posted February 4 16 hours ago, snoshoe said: Farmall model does not have a hand pump. Problem is more likely in all the shafts and joints between steering wheel and front bolster. I can say ANEN to that as all the joints and bushings were worn out. I made my own and that fixed it. 1 Quote Link to comment Share on other sites More sharing options...
int 504 Posted February 17 Share Posted February 17 Here's mine 1963 Int 504. Tried to rotate unsuccessfully. Most often used of my tractors. Quote Link to comment Share on other sites More sharing options...
Drysleeves Posted February 17 Share Posted February 17 First 504's had a white grille casting in literature. Must've been a short lived paint scheme. Quote Link to comment Share on other sites More sharing options...
int 504 Posted February 17 Share Posted February 17 1 hour ago, Drysleeves said: First 504's had a white grille casting in literature. Must've been a short lived paint scheme. My 63 is white. Have a parts Farmall 504 61 or 2 can't remember that was white also. Quote Link to comment Share on other sites More sharing options...
Drysleeves Posted February 17 Share Posted February 17 Screen itself was always white. It was the front cast piece that held the screen that was white for a very short duration. Quote Link to comment Share on other sites More sharing options...

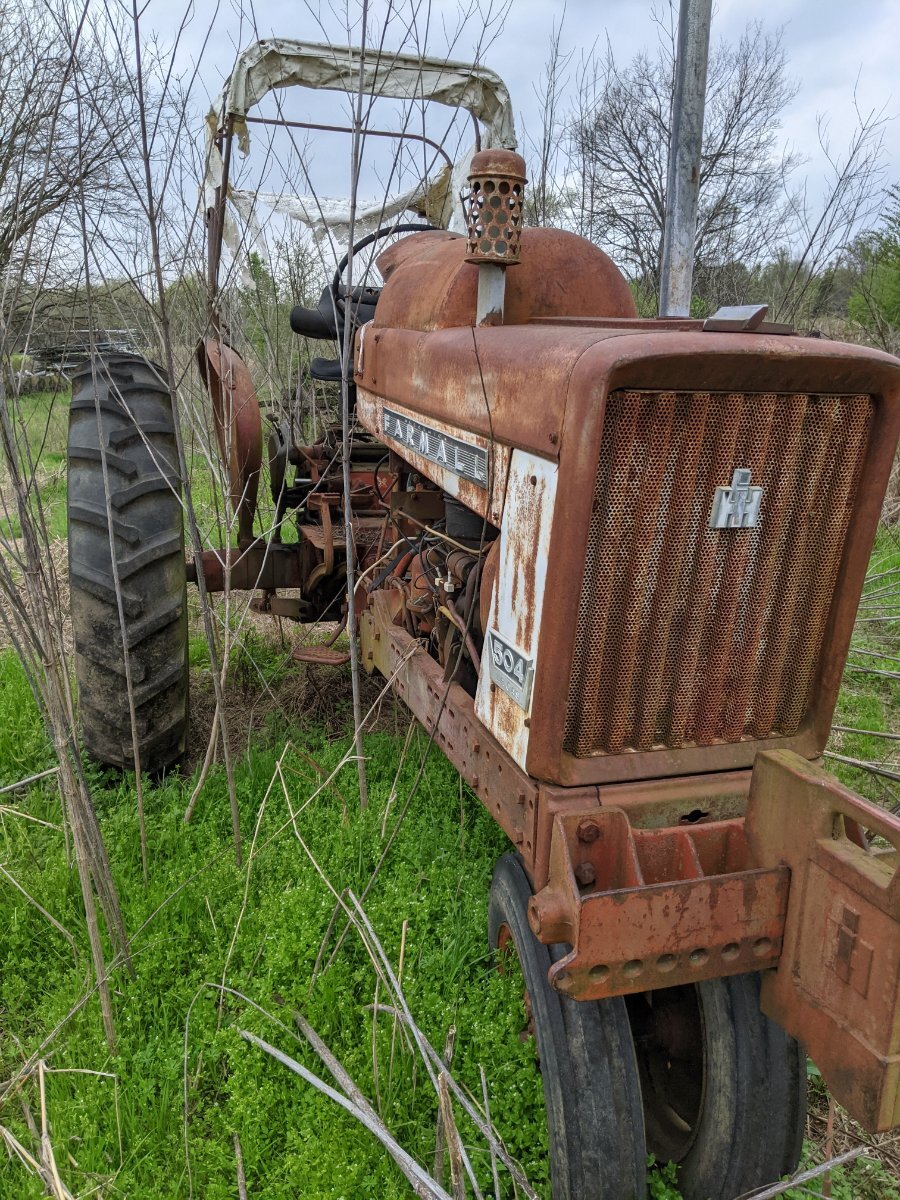

acem Posted April 4 Share Posted April 4 Here's a current pic of mine and the serial number. What's the X Y and FF mean? 1 Quote Link to comment Share on other sites More sharing options...
nepoweshiekfarmalls Posted April 4 Author Share Posted April 4 What I found deciphering my serial number: Quote Link to comment Share on other sites More sharing options...
acem Posted April 5 Share Posted April 5 Mine has Y and FF so it has two pumps? It does have power steering if that matters. What's the X for? Is it rated X? Quote Link to comment Share on other sites More sharing options...
MacAR Posted April 5 Share Posted April 5 1 hour ago, acem said: What's the X for? My sheet says x is for high speed low and reverse attachment, whatever that is. Your tractor does have two pumps, I think. One for the power steering and one for the hydraulics. At least I think so, anyway. Mac Quote Link to comment Share on other sites More sharing options...
