Found 3 results

  1. After noticing a few leaks and then a pipe splitting I removed the loader from my 844xl so I could get all the hydraulics sorted. Several pipes and filters later I am now looking to put the loader back on. I have some questions about the pipework. I know next to nothing about loaders, I’ve put the pipes back on as they previously were; b1 comes from the hydraulic pump T1 returns the the auxiliary tank the previous owners had another pipe running from the T outlet (below t1) to the drain plug at the back end of the tractor. Is this the free flow pipe? Do I need to have it or can I just close off the outlet? What’s the advantages of a free flow pipe? I only ask as someone is telling me I don’t need to re-install it, I’m not convinced but want to understand it first. I don’t know what make the spool block is, the plate has worn away and the serial numbers haven’t been fruitful after a Google search.

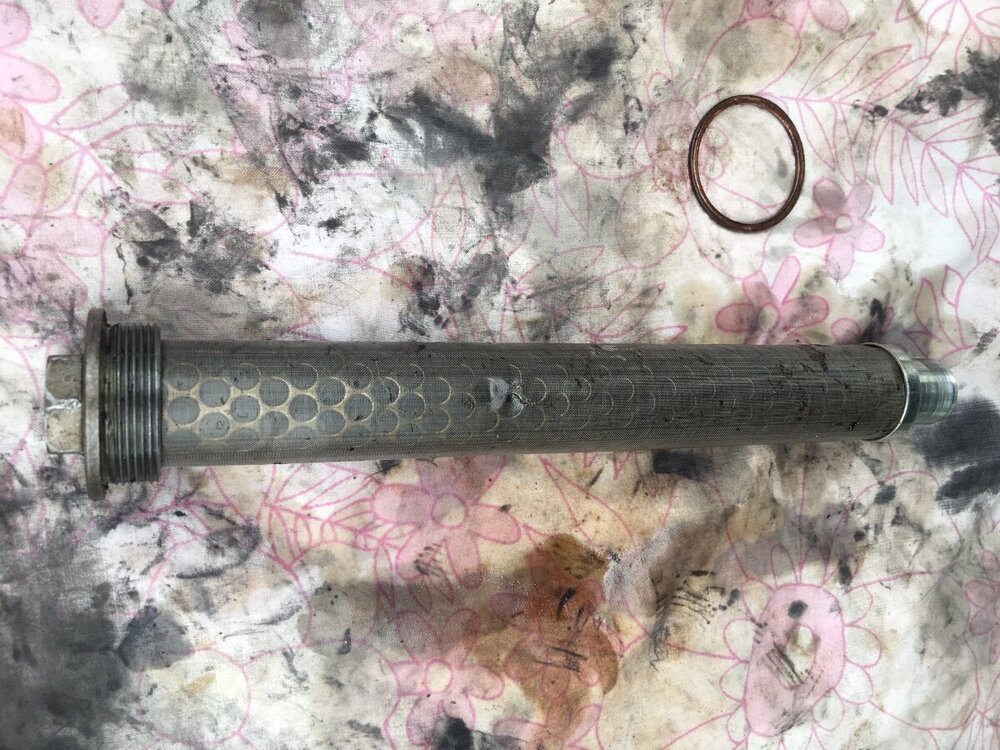

  2. Slowly making my way through the service schedule and checking things over on my 844xl. I removed the suction strainer today to clean, but noticed that part of the mesh was damaged. I thought it would be best to just replace it, but I can’t find a replacement online, so a couple of questions 1) Does anyone know where I could get a replacement, preferably in the uk? 2) Does it definitely need replacing, I kind of thinking it does but happy to take advice. thanks all ed
  3. I’ve recently purchased an IH Case 844xl. I’ve been checking through the electrics and lights and was wondering if anyone had an list of what each of the fuses in the fuse box were for? The manual I purchased doesn’t cover those specifics, just that they’re 8 and 16 amp fuses. It also looks like a previous owner had put some 23 amp fuses in there. The fuses are numbered 1 to 15.
