New Splitting Stands


10 replies to this topic

#1 Farmall Doctor

Farmall Doctor

    Advanced Member

  • Members
  • PipPipPip
  • 2,650 posts
  • Gender:Male
  • Location:Ridgetown, Ontario, Canada

Posted 25 March 2010 - 04:41 PM

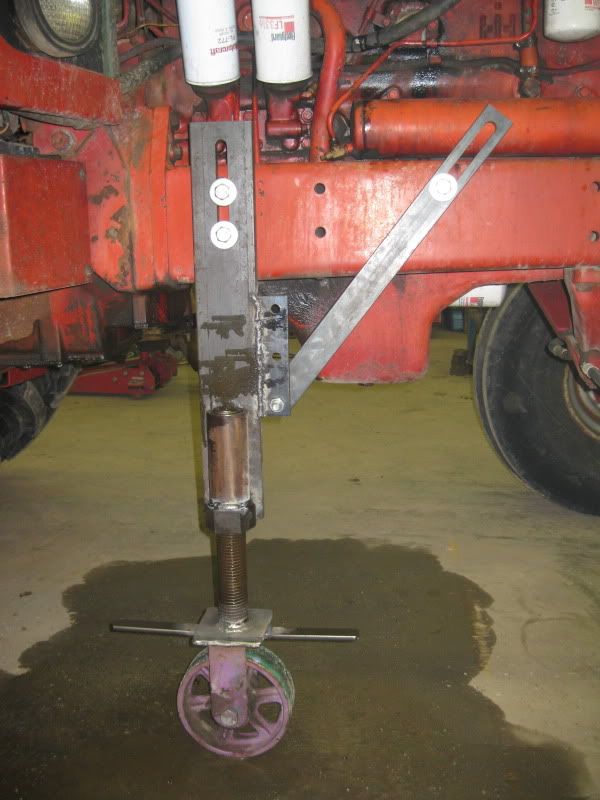

I know you folks like looking at splitting stands, so here are a few pictures of the ones that I just finished building. They are similar to the ones that I have used for the last 16 years at the shop, but a bit heavier, and with more adjustment for height. They will work on any tractor that has side rails on them, but if you split a 666 or 686 you need to make some adapters to keep the engine attached to the rails.. I made those also but don't have a picture handy. Anyhoo, enjoy!
Darryn
Posted Image
Posted Image
Posted Image

OH, and here's a video of milling the slots with my VERY old Van Norman Milling Machine.
http://www.youtube.c...u/0/GlGeF0n_JzA

All IH engines require 30W engine oil!



Click here to enjoy my Youtube Channel.
http://www.youtube.com/FarmallDoctor


#2 664 CDN

664 CDN

    Advanced Member

  • Members
  • PipPipPip
  • 3,221 posts
  • Location:SW Ontario Canada

Posted 25 March 2010 - 06:40 PM

I know you folks like looking at splitting stands, so here are a few pictures of the ones that I just finished building. They are similar to the ones that I have used for the last 16 years at the shop, but a bit heavier, and with more adjustment for height. They will work on any tractor that has side rails on them, but if you split a 666 or 686 you need to make some adapters to keep the engine attached to the rails.. I made those also but don't have a picture handy. Anyhoo, enjoy!
Darryn

OH, and here's a video of milling the slots with my VERY old Van Norman Milling Machine.
http://www.youtube.c...u/0/GlGeF0n_JzA


Thanks Darryn,
we are in the process of making a set, this gives us some more ideas.
How thick are the flat irons?
Ray
664, I1206, F1256, F1456, F300, H, TD5, T20, U1 power unit.
510 sm plow, 70 plow, 415 roller mulcher, 1300 9ft mower, 2350 mount o matic loader, 990 haybine
Dad,s 1940 Farmall A

#3 Samsdad

Samsdad

    Advanced Member

  • Members
  • PipPipPip
  • 360 posts
  • Gender:Male
  • Location:Brandon, Vermont
  • Interests:Farming and maple business, snowmobiling, old tractors, tractor pulling, anything with a motor.

Posted 25 March 2010 - 06:42 PM

Cool stuff!

#4 Farmall Doctor

Farmall Doctor

    Advanced Member

  • Members
  • PipPipPip
  • 2,650 posts
  • Gender:Male
  • Location:Ridgetown, Ontario, Canada

Posted 25 March 2010 - 06:56 PM

Ray- the uprights are 1" thick by 4" and the stabilizer bars are 2" by 1/2". I can get you the other dimensions tomorrow if you wish.
